1500cc Go Kart Dune Buggy EFI 4WD With Cherry Auto Engine 4 Seats

FOB Reference Price:Get Latest Price
US $9,500-10,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ANAN
Model Number:
FPG1500E-4
Certification:
EEC
Engine:
4Cylinder,4-Strokes,water cooled
Drive Mode:
Shaft
Wheel Size:
F:27*8-14 R:27*11-14
Oil Tank Capacity:
30L
Maximum Speed:
120km/h
Displacement:
1100CC
Brake Type:
Hydraulic Disc Brake
Engine Capacity:
801-1100cc
Supply Ability
Supply Ability:
100 Unit/Units per Week
Packaging & Delivery
Packaging Details
STEEL WITH CARTON
Port
NINGBO
Lead Time :
25DAYS
Product Description

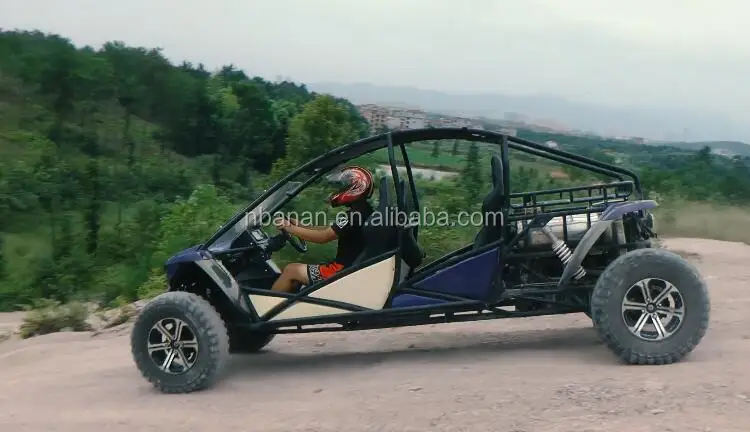

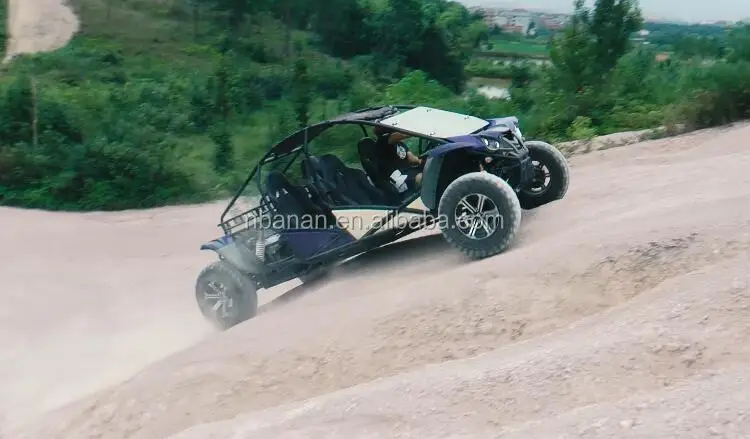

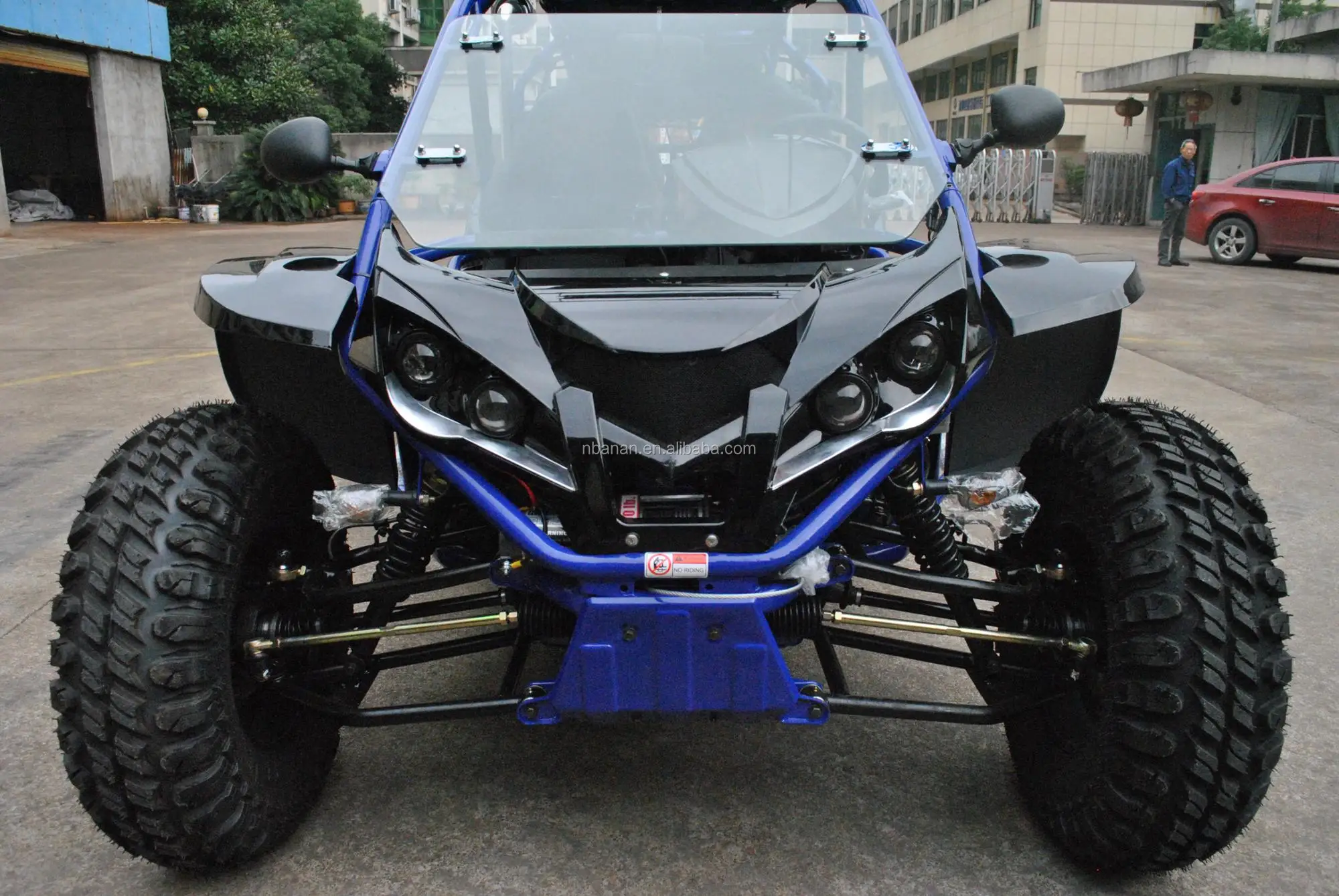

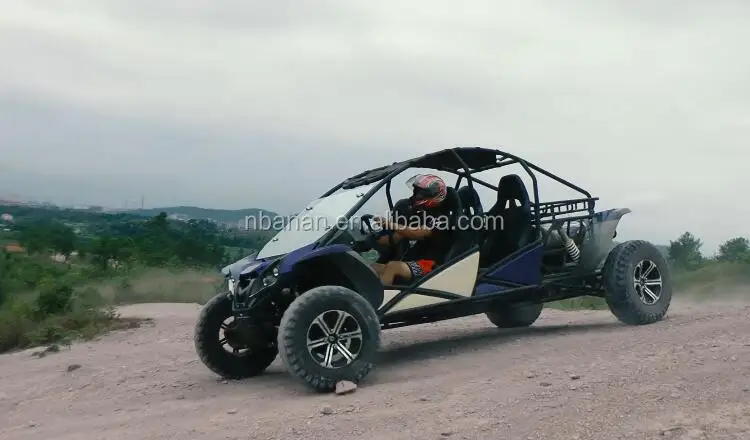

 1.jpg2.jpg3.jpg4-seat 017.jpg

4-seat 019.jpg



DIMENSIONS

Overall Length---------------------------------------------------------------------------------------152 in. (3860mm)

Overall Width -------------------------------------------- --------------------------------------------73 in. (1860mm)

Overall Height ----------------------------------------------------------------------------------------67 in. (1700mm)

Wheelbase ------------------------------------------------------------------------------------------ 124 in. (3150mm)

Ground Clearance ---------------------------------------------------------------------------------- 12.2in. (310mm)



ENGINE

Type --------------------------------------------------------------------------------Liquid-cooled – 4Cyl 4-Stroke

Bore x Stroke -------------------------------------------------------------------------------------77.4mm×79.52mm

Displacement ---------------------------------------------------------------------------------------------------1497 cc

Compression ratio ----------------------------------------------------------------------------------------------10.5:1

Fuel System --------------------------------------------------------------------------------------------------------- EFI

Max Power --------------------------------------------------------------------------------------------80kw/6000rpm

Maximum Torque ---------------------------------------------------------------------------------140Nm/3000rpm

Starting ---------------------------------------------------------------------------------------------------------- Electric

Ignition --------------------------------------------------------------------------------------------------------------- ECU

Lubrication -------------------------------------------------------------------------------------------------- Wet Sump

Transmission ------------------------------------------------------------- Manual clutch, 5 Forward/Reverse

Plug gap -----------------------------------------------------------------------------------------------------0.035-0.043

Fuel type -------------------------------------------------------------------------------------------- RQ93 (unleaded)

Lubricate oil ---------------------------------------------------------------------- ----------------------  SAE-15W/40

Gear Lube oil ---------------------------------------------------------------------- ---------------------- GL-4 75W/90



CAPACITIES

Maximum load --------------------------------------------------------------------------------- -----------------250LBs

Fuel tank ----------------------------------------------------------------------------------------------------------- 30.0L

Engine oil ------------------------------------------------------------------------------------------------------------3.6L

Gear oil  ------------------------------------------------------------------------------------------------------------ 2.3L

Coolant ---------------------------------------------------------------------------------------------------------------8.0L

Battery -------------------------------------------------------------------------------------------------------- 12V36Ah

Head Light --------------------------------------------------------------------------------------------12V 55W/Both

Tail Light ---------------------------------------------------------------------------------------------- 12V 20W/Both

Top speed -------------------------------------------------------------------------------------------72mph(115km/h)



CHASSIS

Front, Rear brake --------------------------------------------------------- Hydraulic disc, right foot control

Front tire -------------------------------------------------------------------------------------------------------28×10-14

Rear tire ------------------------------------------------------------------------------------------------------ 30×10-14

Front Suspension ------------------------------------------------------------------- Independent Dual A-Arm

Rear Suspension -------------------------------------------------------------------- -Rear Trailing Swing Arm

Final Drive ----------------------------------------------------------------------------------------- Shaft driven



TIRE PRESSURE

Front ---------------------------------------------------------------------------------------------------------------- 35 psi

Rear ----------------------------------------------------------------------------------------------------------------- 35 psi



WEIGHT

Net Weight ---------------------------------------------------------------------------------------------------------862kg

Gross Weight ------------------------------------------------------------------------------------------------------1000kg
